Basic Settings

Use the menu item Basic Settings to access all of JaniWeb’s general settings.

Changes made here may affect the application itself or its interfaces. Please only make changes here that you have discussed with your contact person.

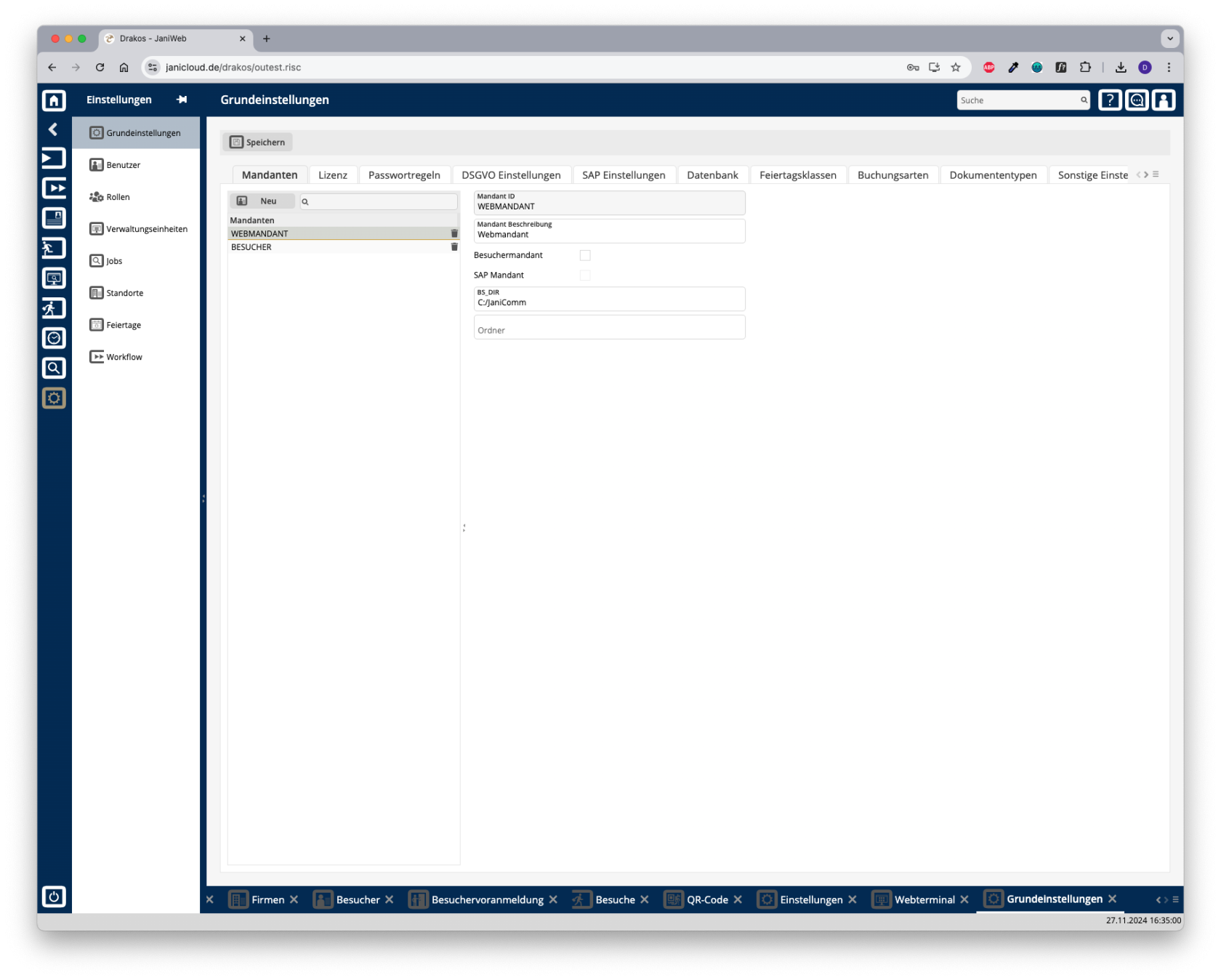

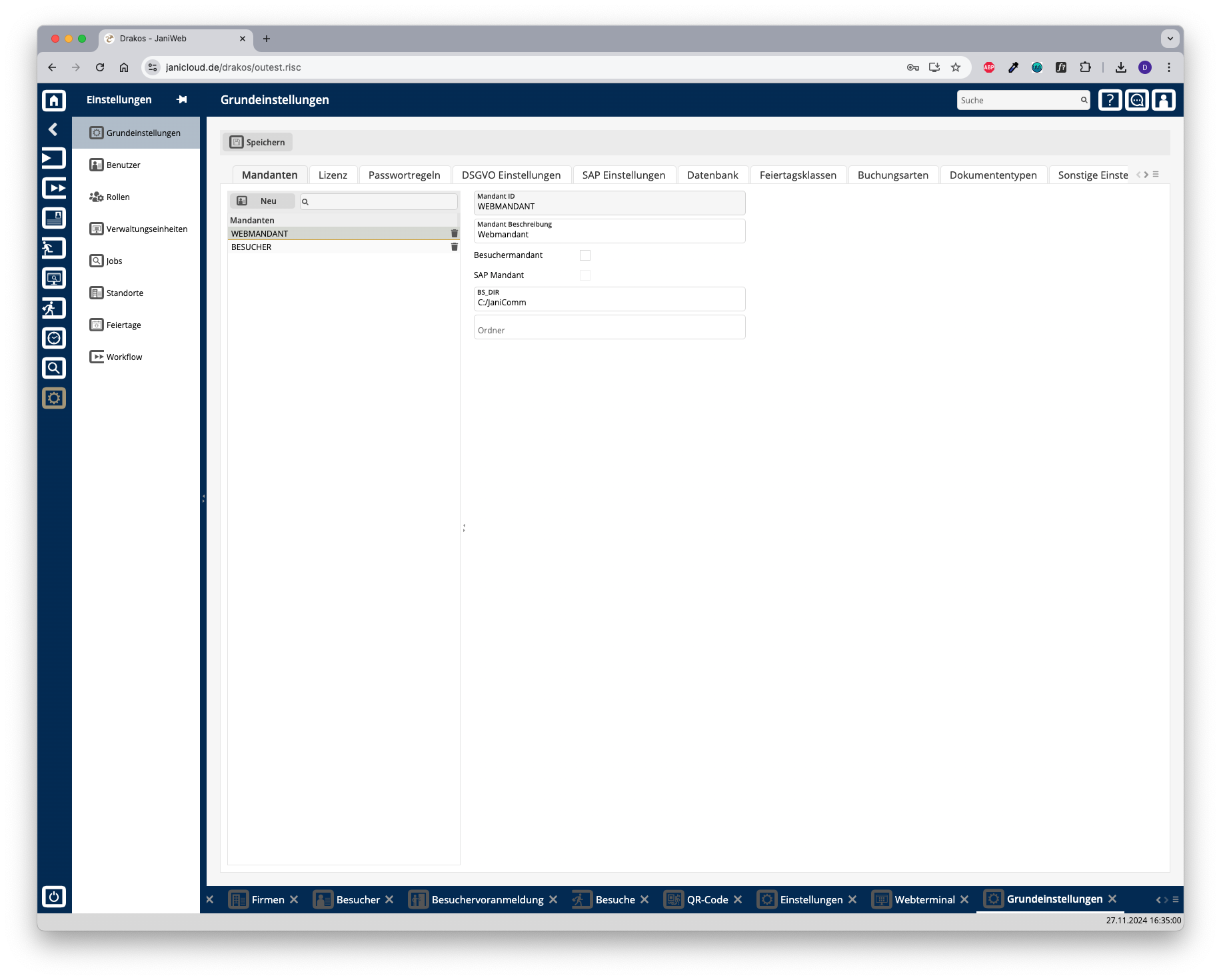

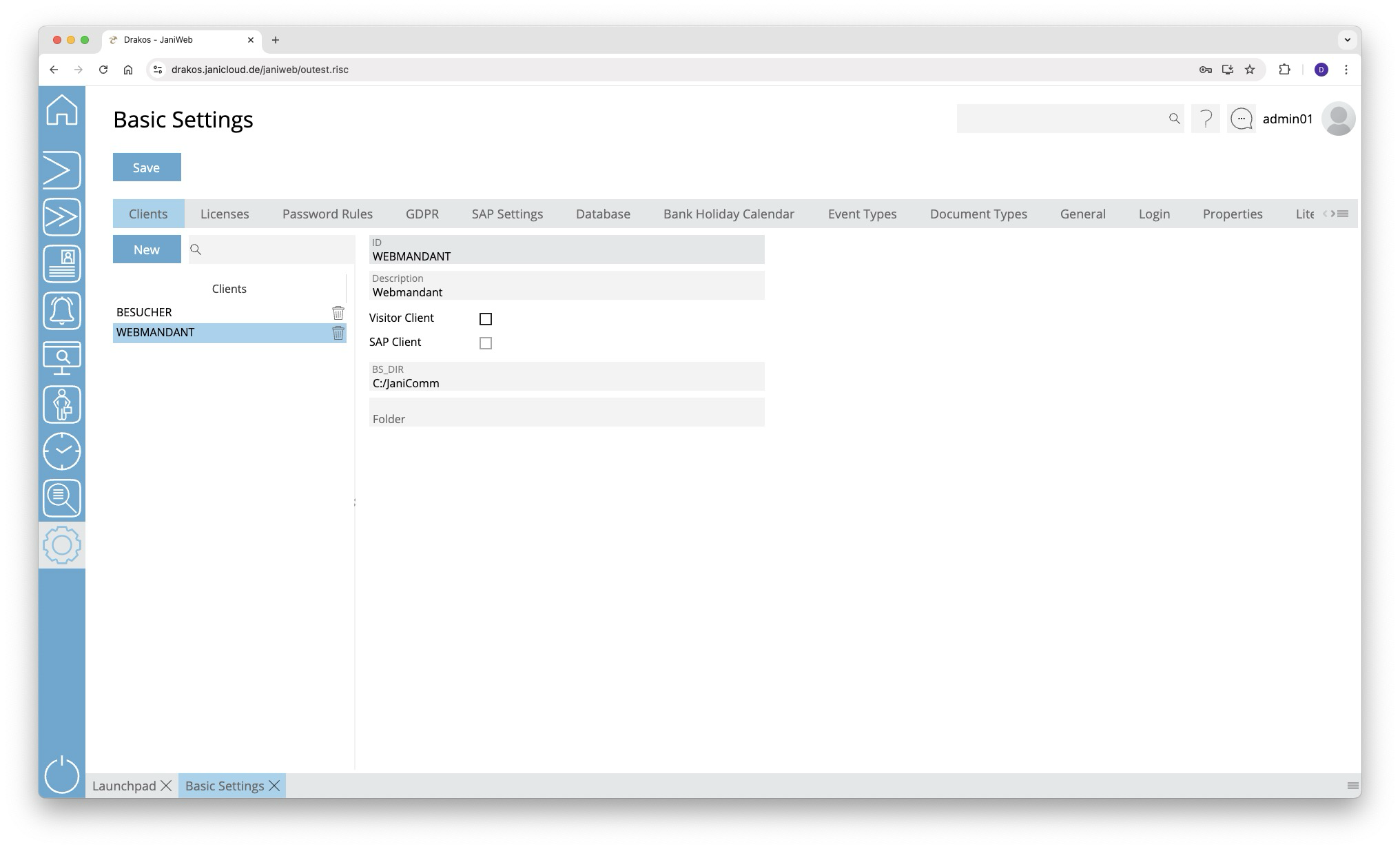

Tab Clients

This is where you manage different clients in the system. Clients describe the origin of the data and are linked to the objects (e.g. persons, devices, device groups, etc.). The list contains the clients that have already been created. Select an entry to view details.

Press New to create a new client. Enter the required data and press Save.

Detail area

• ID: Enter the 10-digit client ID.
• Description: Enter a meaningful name.
• Visitor Client: Select this option if the client is to be used for visitor management.
• SAP Client: This field is automatically filled when importing data from SAP.
• BS_DIR: Specify the base directory of the application here.
• Folder: Specify the name of the SAP exchange directory here.

Tab License

Here you can see which license you are using.

Tab Configuration

To use a new license, press Upload License File. Select the file provided by your contact person.

The list displays the features that are currently licensed.

Tab Monitoring

Any features whose use is restricted are displayed here together with their level of use.

If required, activate the option Alert for license violation for all users and enter a note.

Tab Password Rules

Specify the strength of the passwords used. Enter the minimum Password length and select the desired options for the composition of passwords.

• Failed attempts: Specify here after how many failed login attempts the user is blocked.
• Password expiration: Specify here after how many days users are prompted to enter a new password. Enter the number 0 if passwords should be valid indefinitely.

Tab GDPR

Specify the number of days after which expired records are automatically deleted. This is also possible for the server log files.

Tab SAP Settings

Specify the number of days for which the backups of the SAP import files should be kept. You can also specify the file name for exported bookings.

• PTEX …: Use these fields to define the file name and the client for deleted bookings.
• Enable API Gateway Data Import: Activate this option to enable importing master data via the API gateway.
• Enable API Gateway Data Export: Activate this option to enable exporting master data via the API gateway.
• Threshold person import (%): Use this field to set the threshold value for the import of persons. If the current import of persons falls below the threshold value (comparison with the number of persons from the last import), the import is rejected. You can use the Import anyway button to import a rejected import anyway.

Tabs General / Balance Data

Use these tabs to map the fields of an imported SAP record to the fields in JaniWeb.

Tab Database

Connection and other status information for the databases used is displayed here.

• Press Show function status to display a list of the functions used for all databases in a pop-up window.
• Press Show procedure status to display a list of the procedures used for all databases in a pop-up window.


Information about the version of a function or procedure can be found in the column Comment.

Tab Holiday Calendar

Manage different holiday calendars here. These are used to group holidays regionally and assign them to persons.

Press New to create a new holiday calendar. Enter an ID and a Description. Use the respective trash icon to delete a holiday calendar.

Tab Event Types

This is where you can specify the event types that should be available at the terminals. The event types are also used for the web terminal. For each booking type, specify whether the booking is triggered by the device itself or by a person (e.g. clock-in, clock-out).

To set the Text for a event type, press Translate. Enter the names for the respective languages and press Save.

With the Booking Type column you can select whether the booking marks the person as present or absent (this is particularly important for calculating working hours in the Overview Bookings menu item).

Use the respective trash icon to delete a event type.

Tab Document Types

This is where you can manage the document types that are available for selection on the tab Documents in the personal master data.

Tab Miscellaneous

This is where you can define which areas and tiles should be preset in the launchpad.

• All Tiles: Select this option to display all menu items as tiles on the launchpad by default.
• Info text / Info mail address: Enter the text and email address that will be displayed in the info area (accessible via the user icon in the top right > Info).
• Image Aspect Ratio: Define the aspect ratio (width:heigth) for images added in the menu items Persons/Visitors (e.g. 4:3, 16:9).

Area Launchpad Areas

Create areas here that will appear by default on the launchpad.

• Press Add to create a new area.
• To set the Text for an area, press Translate. Enter the names for the respective languages and press Save.
• Enter a number in the Sequence column to determine the sequence in which the areas are displayed.

Area Visible Tiles

Create tiles here that are linked to a PDF or link. When the tile is pressed, the PDF or linked page opens.

To set the Text and the Description for a tile, press Translate. Enter the names for the respective languages and press Save.

Tab Login

Specify here how users login.

Area Username and Password

If your system does not use LDAP login, you can assign fields from the HR master record as the Username and Password.

• Username: Select the desired field from the personnel master record (for example, Personnel No.).
• Password: Select the desired field from the personnel master record (e.g. Personal PIN).
  Select Own Password if the user should be able to set their own password. The user receives an Initial Password for the first login. Select a field from the personnel master record in the field of the same name.

Forgotten passwords can be reset. To do this, remove the corresponding entry from the list. The user must then login again with their initial password.

Area Login Restrictions

Here you can specify which persons are allowed to login to JaniWeb.

• Criterion: Select the database field that is used to check the login authorization.
• Filter: Enter values separated by semicolons for users who are not allowed to login.
• Whitelist: Press this button to enter IP addresses and DNS names of all clients from which the kiosk application, for example, may be accessed.

Tab Properties

This is where you make settings for the SMTP server, LDAP connection, database backup, and SAP exchange directory. Any changes made here require a restart of the Tomcat server.

Area Device Master Record Calculation

• Enable FTP/SFTP for Master Record Dispatch: Use this option to specify that master data is to be transferred to devices from the manufacturer Dormakaba using FTP/SFTP.
• BPA9 Fallback: Specify an alternative method here for when transmission to a device via FTP/SFTP is not possible (e.g. for older devices).
  • Select Server File System if the master data file is to be created in a directory on the server.
  • Select Network Directory if the master data file is to be stored in a network directory via SFTP.
• Press Base supply to recalculate all master data and send it to the devices.
• Trigger File Master Record Calculation : Enter the path for the trigger file that is to be created after the master data calculation. If no file is to be created, the field can be left empty.

Area Device Models

Specify the various device types that can be selected in the menu Devices.

Area LDAP

Specify here the required settings for logging in via LDAP.

• ldap_host: IP address of the LDAP server
• ldap_port: Port of the LDAP server
• ldap_user: Enter the full Distinguished Name (DN) for the LDAP user to search the Active Directory (AD) with.
• ldap_pwd: Password of the LDAP user
• ldap_base_dn: Enter the AD directories to be searched (separate multiple directories with commas).
• ldap_field: Enter the LDAP field that is to be compared with the system field ldap_person_table (hrcc1dnperso01, hrcc1dnbalan01, hrcc1dnperso01_data_relation) and ldap_person_field in order to assign the correct person.
• ldap_object_catergory: Enter the AD field to be searched for the permissions assigned in the roles under LDAP Group.
• using_ssl: Activate this option if SSL is to be used for the connection (LDAPS).
• ignore_leading_0: Activate this option if leading zeros are to be ignored when matching the ldap_field.

Area Email

Here you define the access data for the SMTP server used.

• smtp_username: Enter the user name.
• smtp_password: Enter the password.
• smtp_server: Enter the server address of the SMTP server.
• smtp_port: Enter the port of the SMTP server.
• admin_mail: Enter the email address that the system uses to send messages.

Area Master Record Lock

Activate the automatic master record lock here. You can specify after how many error attempts (number of failed attempts) within a certain period (time period in seconds) a master record should be locked. In addition, you can use the field event types to specify which booking errors should be taken into account.

Area SAP Settings

Make settings for updating SAP data here.

• sap_refresh_data_dir: Enter the directory from which the SAP import is to be read. Click the plus icon to select multiple directories.
• sap_refresh_archiving: Activate this option if you want to archive the imported data.
• booking_job_archiving: Activate this option if you want to archive the exported booking data.

Area Database Backup

Here you can configure an automatic database backup. The backup is performed once a day at night.

• db_backup_days: Enter the number of days for which the backup is to be stored.
• db_backup_dir: Enter the path where the backup should be saved.
• db_backup_filename: Enter the file name of the backup.
• db_backup_tables: Select the database tables to be backed up.

Area Devices

• terminal.localfile: Enter the directory for the trigger file that triggers the creation of the terminal.ini file.
• terminal.parameter: Enter the directory in which parameter files for devices from the manufacturer Dormakaba are to be stored.
• term.ip.gid: Specify the limit for the GID that can be assigned to a device.
• term.ip.did: Specify the limit for the DID that can be assigned to a device.
• INTUS COM Directory: Enter the directory where INTUSCOM is located.

Area Control Management

In the field control.management.filelocation, enter the directory in which parameter files for devices from the manufacturer Dormakaba are to be stored when they are created using control management.

Area Logging

In this area, you can use the field logs_directory to specify the directory to be sent to the recipients (specified in the field logs_recipients). Press Send logs to start sending.

• log_directory: The directory in which JaniWeb stores log files.
• log_limit: The maximum size of log files.
• log_count: The maximum number of log files.
• log_level: The logging level.

Area License Violation

Specify the threshold from which you would like to be informed about the current license usage.

• license_usage_email_recipient: Enter the email address to which information about license usage should be sent. Press the plus icon to add additional email recipients.

• license_violation_email_recipient: Enter the email address to which license violation information should be sent. Press the plus icon to add additional email recipients.


Area Other

Here you can define various other basic settings.

• booking_report_limit: Use this option to define the maximum number of results displayed in the booking report.
• Delete archived booking records after (days): Use this option to specify the number of days after which archived bookings are deleted. This does not affect archived bookings themselves.
• badges_limit: Specify here how many people can be loaded at once (e.g. via the menu item Persons).
• disable_cookie_login: Activate this option if you do not want a cookie to be stored when logging in via the mobile application.
• Extended names search: This option must be activated if the first name and surname are split between the database fields hrcc1dnperso01.edit_name and hrcc1dnperso01.sort_name.

Tab Literals

This is where you can edit the terms used in the JaniWeb user interface (tab Literals) and Help texts for various languages.

IMPORTANT: If you change the terms used in the user interface, the operating instructions will no longer match the product. Drakos assumes no liability for the consequences of such changes.

Tab Import

You have the option to initially import personnel master records from a CSV file. The following fields describe a personnel master record. Entries with an X in the column Mandatory must be filled.

Name	Data type	Table	Mandatory
admin_unit_id	char (4)	hrcc1dnperso01
source_sys	varchar (10)	hrcc1dnperso01	X
timeid_no	char (24)	hrcc1dnperso01
from_date	date	hrcc1dnperso01	X
to_date	date	hrcc1dnperso01	X
timeid_version	char (1)	hrcc1dnperso01
perno	varchar (11)	hrcc1dnperso01	X
first_name	varchar (40)	hrcc1dnperso01	X
last_name	varchar (40)	hrcc1dnperso01	X
langu	char (1)	hrcc1dnperso01
langu_iso	char (2)	hrcc1dnperso01
subsystem_grouping	char (3)	hrcc1dnperso01
access_control_group	char (2)	hrcc1dnperso01
personal_code	char (4)	hrcc1dnperso01
comp_code	char (4)	hrcc1dnperso01
costcenter	varchar (10)	hrcc1dnperso01
customer_field_1	varchar (20)	hrcc1dnperso01
customer_field_2	varchar (40)	hrcc1dnperso01
company_id	varchar (4)	hrcc1dnperso01_data_relation
prohibition	char (1)	hrcc1dnperso01_data_relation
prohibition_reason	varchar (150)	hrcc1dnperso01_data_relation
ident	varchar (2)	hrcc1dnperso01_data_relation
email	varchar (100)	hrcc1dnperso01_data_relation

A sample file for importing persons in CSV format can be found here: Sample Personen CSV Import
